Seamless movement

Move your pallets with ease by purchasing from our extensive pallet jack range. When it comes to materials handling equipment you’ll be assured of the finest quality and products when you order from Ideal Systems. Select from either manual or electric jacks, to suit a wide range of applications.

For a larger range of products please visit the Team Website.

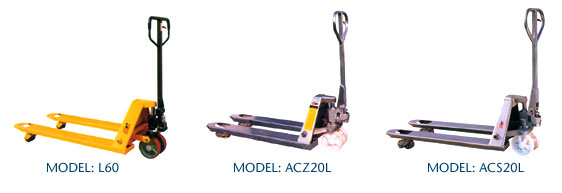

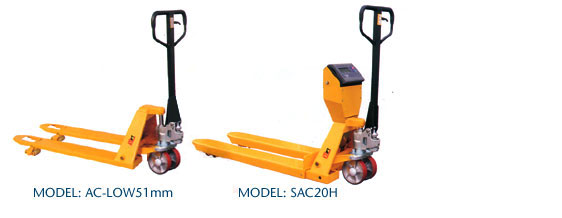

Item/Type L60 ACS20L ACZ20L AC - LOW - 51mm SAC20H
Capacity (kg) 2500 2000 2000 2000 2000
Min. fork height (mm) 75 75 75 51 88
Max fork height (mm) 185 190 190 165 200
Steering Wheel (mm) o200/180x50 o180x50 o180x50 o180x50 o180x50
Load Roller Single o74x93 o74x93 o74x93 o50x93
(mm) Tandem o74x70 o74x70 o74x70 o50x70 o74x70
Size of fork (mm) 177x45 160x60 160x50 160x37 178x60
Width overall folks(mm) 450/520/685 685 685 658 658
Fork Length (mm) 1150 1150 1150 1150 1150
